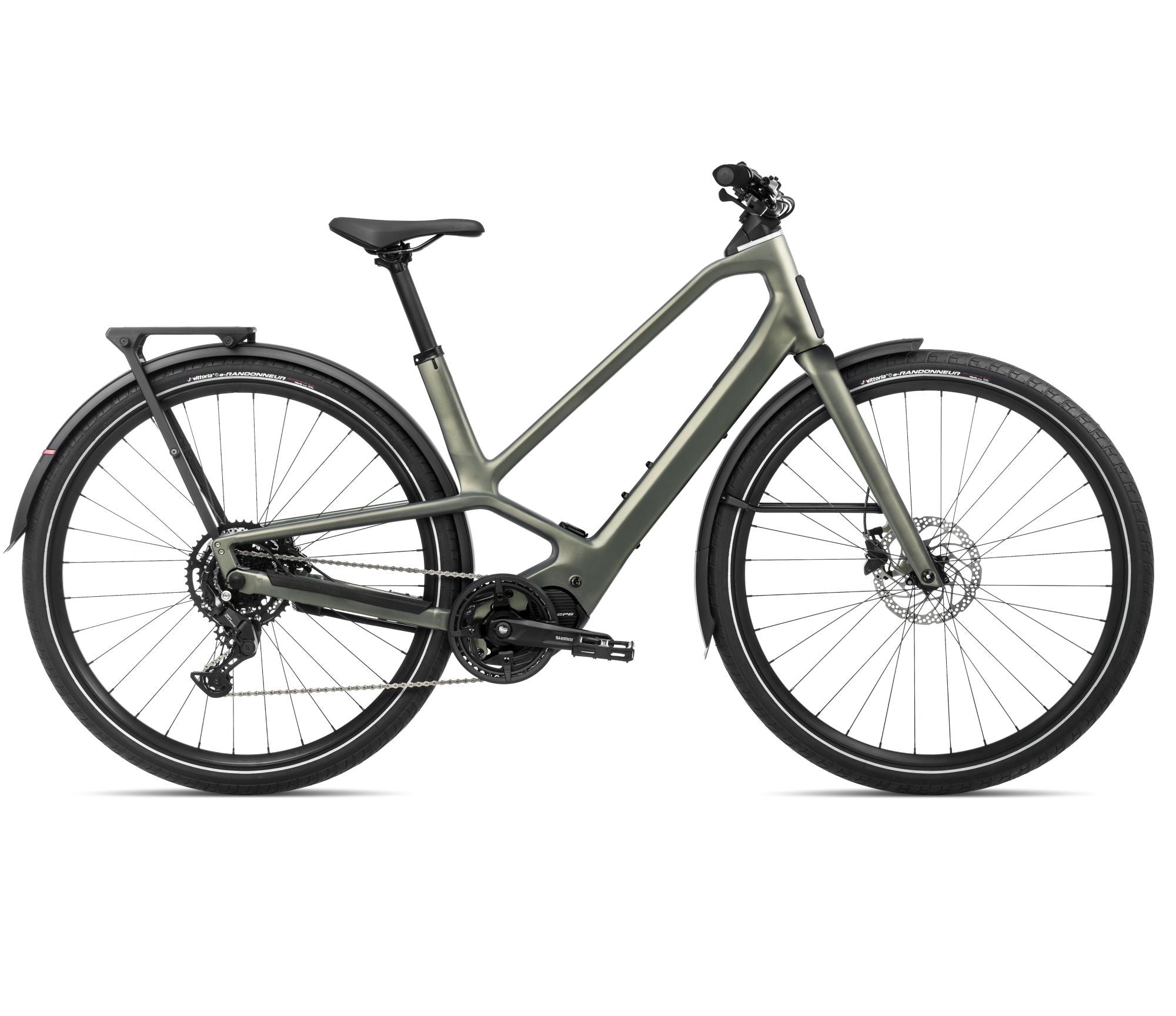

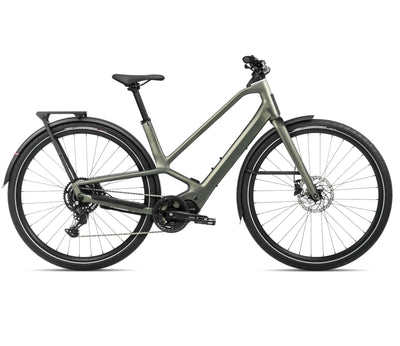

2025 Orbea DIEM 30 28mph City URBAN E-BIKES - X-Large, Spaceship Green (Matte)
SKU: S69009WL
Free Shipping on orders over $50*
Found a better price? Request a Price Match
Shipping
Shipping
*Free shipping applies to parts orders over $50 shipping to addresses within the contiguous U.S. (excludes HI, AK, APOs and US territories). Some exclusions apply.
International Orders
We can sell and ship some items internationally but certain brands or substances may be prohibited from shipping outside of U.S. or to certain territories.
We are unable to estimate local taxes and VAT and are not responsible for any of these charges or duties.
Package forwarders may be utilized at your discretion. We are not responsible for any damage that occurs after your item has been delivered to the shipping address. All shipments need to be inspected prior to being forwarded to secondary destinations.
Lead Times
We under promise and over deliver. Although many products will ship the same day or next day, our official policy is 2-4 business days of handling time including expedited orders (Next Day Air, etc.). If you need something in a rush please use a premium shipping service and contact us prior to placing your order for a more accurate ETA.
Shipping Restrictions
Certain items containing lithium batteries, compressed air or hazardous materials may only be shipped within the contiguous U.S. using ground delivery only.
Oversized items, including bikes, may not be available for expedited shipping. We will contact you should in the event that your selected shipping service is unavailable for your order.
Bike Builds
All bikes are built, checked and test ridden prior to boxing and shipping. This process averages 1-3 weeks depending on our backlog and the complexity of your build. Expedited builds are available for an additional fee, contact us for details.
Complete bikes are packed in our own specially designed bike boxes but do require some basic assembly. If you aren't confident in your mechanical abilities please have your local shop do the final assembly.
Only bikes/frames over $3000 are eligible for free shipping. There is a $150 charge on all bikes/frames under $3000.
Received a damaged item or bike?
We do our best to protect everything we ship but accidents do happen. Please keep all packaging and contact us within 24 hours of receiving your order so we can file a claim.
Details
Specifications:
- Frame: Orbea Diem Hydro High Polished 2024, Flex Tech, 135x9 / 142x12, Headset Routing, Custom Kickstand, Orbea Urban Cockpit and equipment compatible
- Fork: Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5 , thru axle 12x1, post mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
- Headset: FSA 1-1/2" Integrated Aluminium Cup
- Handlebar: Orbea Urban, Integrated Light, Rise 54, Width 700
- Brakes: Shimano MT201 Hydraulic Disc
- Rear Derailleur: Shimano Cues U4000 GS Shadow
- Shifters: Shimano Cues SL-U4000
- Cassette: Shimano CS-LG300 11-46t 9-Speed
- Chain: KMC eGlide
- Crank: FSA CK-752 Shimano EP600/801 165mm
- Pedals: VP-537 Black
- Wheels: Alloy, Tubeless, 25c, 32H
- Tires: Vittoria e-Randonneur 50-622, Reflective band
- Seatpost: Alloy 31.6x300mm Offset 0
- Saddle: Selle Royal Vivo Ergo
- Mudguard: Curana Apollo Orbit 60mm
- Front light: Supernova Starstream Pro, High Beam
- Front Light 2: Orbea integrated, USB-C charging point
- Quick stand: Orbea Diem Integrated
- Battery: Orbea Internal 540Wh (Optional 252 Wh Range Extender)
- Motor: Shimano EP600
- Charger: Orbea 2.Generation eBike Smart charger 42V/2-4A
- Remote1: EN600-L
- Bell: Knog OI Classic
- Rear carrier: Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg
