UPHOLDING A TIME-TESTED, RACE-BRED ETHOS THAT SAYS NOTHING SHOULD HOLD A RIDER BACK FROM THE SHEER JOY OF UNTETHERED SPEED. BUILT OFF ONE OF THE MOST WINNING RACE PLATFORM IN EWS HISTORY, THE SB160 IS PURE RACE MACHINERY. HONED FOR MORE.
BE FASTEST.
FROM LEGACY TO DYNASTY.
THE YETI/FOX FACTORY TEAM WON 51 EWS STAGES, 12 EWS RACES, AND 1 NATIONAL SERIES CHAMPIONSHIPS ABOARD THE SB150. THE SB160 BUILDS MOMENTUM ON THIS LEGACY OF EXCELLENCE. HONED. REFINED. EVEN EFFING FASTER.

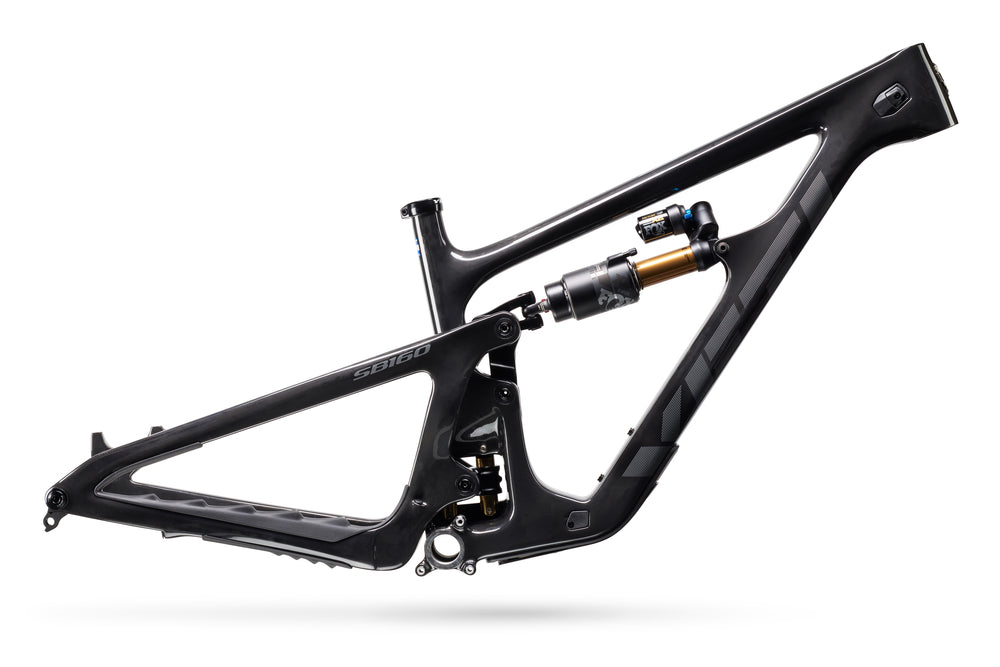

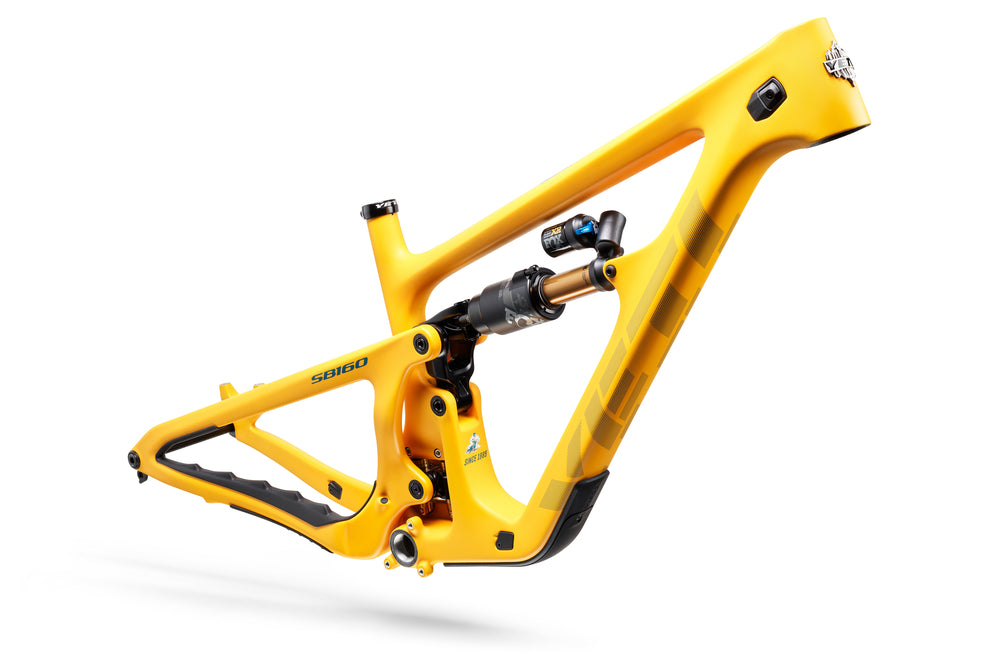

FRAME HIGHLIGHTS:
- NEW Switch Infinity assembly on T-Series
- NEW Threaded bottom bracket
- NEW High-clearance downtube
- NEW Dual-density downtube protection
- Universal Derailleur Hanger (UDH)
- Secure, fully enclosed internal cable management
- Compatible with long dropper posts
- 100% standard sealed Enduro Max bearings
- Floating collet axle pivot design
- Compact-wishbone shock extender
- Downhill tested
- Yeti/Fox Factory team approved
- Boost spacing
- Sizes S-XXL
GEOMETRY
Specifications:
FRAME: TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
REAR SHOCK: FOX FLOAT X2
FRAME TRAVEL: 160MM
FORK TRAVEL: 170MM
LEVERAGE RATE: 17%
WHEEL SIZE: 29"
HEAD TUBE ANGLE: 64º
EFFECTIVE SEAT TUBE ANGLE: 77.5º

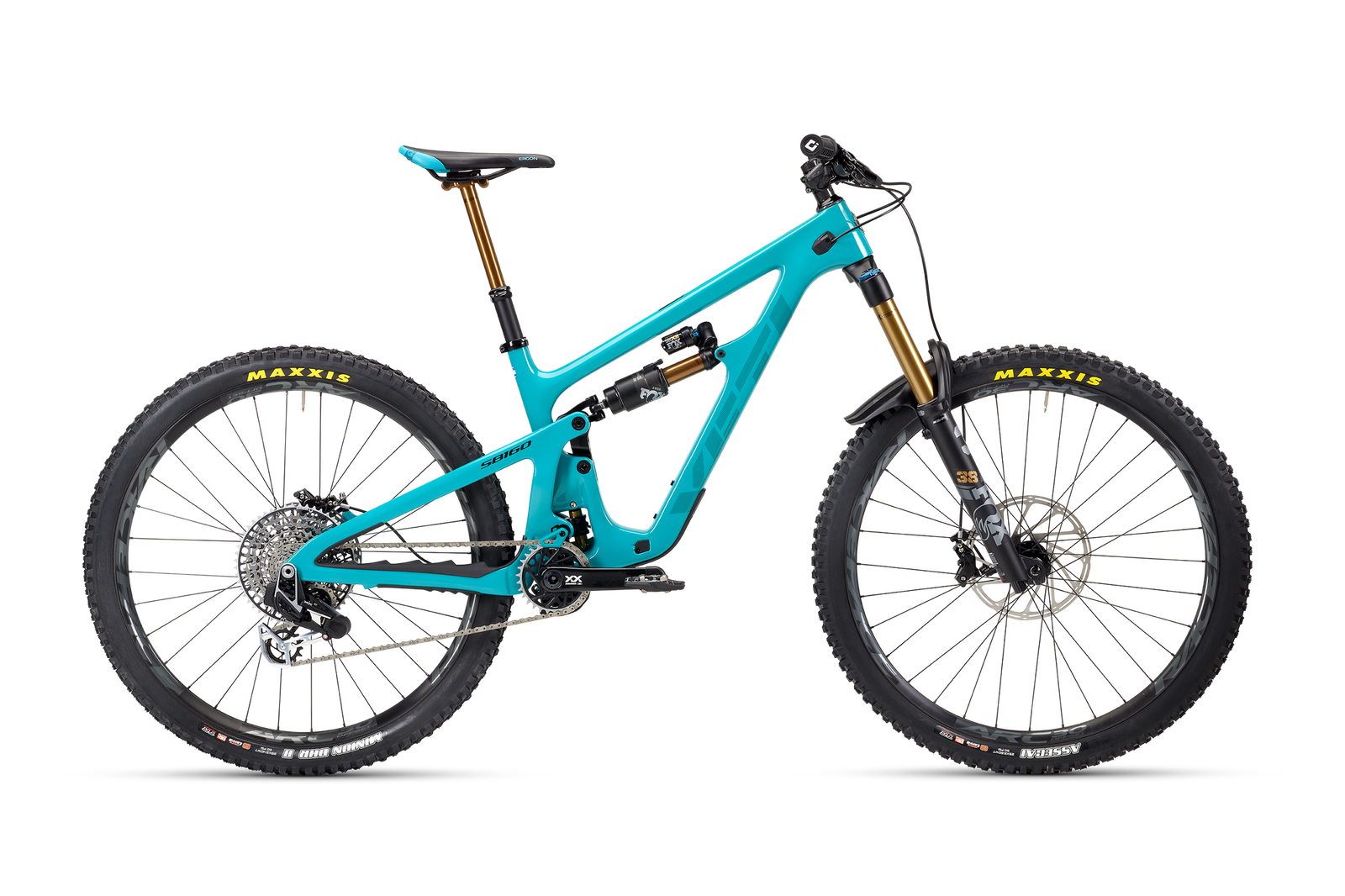

Build Kit:
| Details |
TURQ Carbon Frame, 170mm Fox Factory 38 Grip2 and Float X2, SRAM X0 T-Type and Code RSC Brakes |
| Frame |
TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle. |
| Fork |
FOX FACTORY 38 GRIP 2/170MM |
| Material |
TURQ SERIES |
| Weight |
33.93 |
| Travel |
160MM (6.3") |
| Rear Shock |
FOX FACTORY FLOAT X2 |
| Wheelset |
RACEFACE ARC OFFSET 30MM/DT SWISS 350 |
| Rear Der |
SRAM X0 EAGLE AXS TRANSMISSION |
| Shift |
SRAM AXS POD CONTROLLER |
| Crank |
SRAM X0 EAGLE TRANSMISSION 30T 170MM |
| BB |
SRAM DUB BSA 73 |
| Cassette |
SRAM X0 EAGLE TRANSMISSION 10-52 |
| Chain |
SRAM X0 EAGLE TRANSMISSION FLATTOP |
| Brakes |
SRAM CODE RSC |
| Rotors |
SRAM CENTERLINE 200/SRAM CENTERLINE 200 |
| Post |
FOX TRANSFER 31.6MM / SM: 150MM, MD: 175MM, LG-XXL: 200MM |
| Front Tire |
MAXXIS ASSEGAI 2.5 EXO+ |
| Rear Tire |
MAXXIS MINION DHR II 2.4 EXO+ |
| Headset |
CANE CREEK 40 INTEGRATED |
| Bar |
YETI CARBON 35X800MM 35MM RISE |
| Stem |
BURGTEC ENDURO MK3 35X50MM |
| Grips |
ODI ELITE PRO |
| Seat |
SILVERADO CUSTOM |
| Bash Guard |
MRP AMG SL |
GEOMETRY
