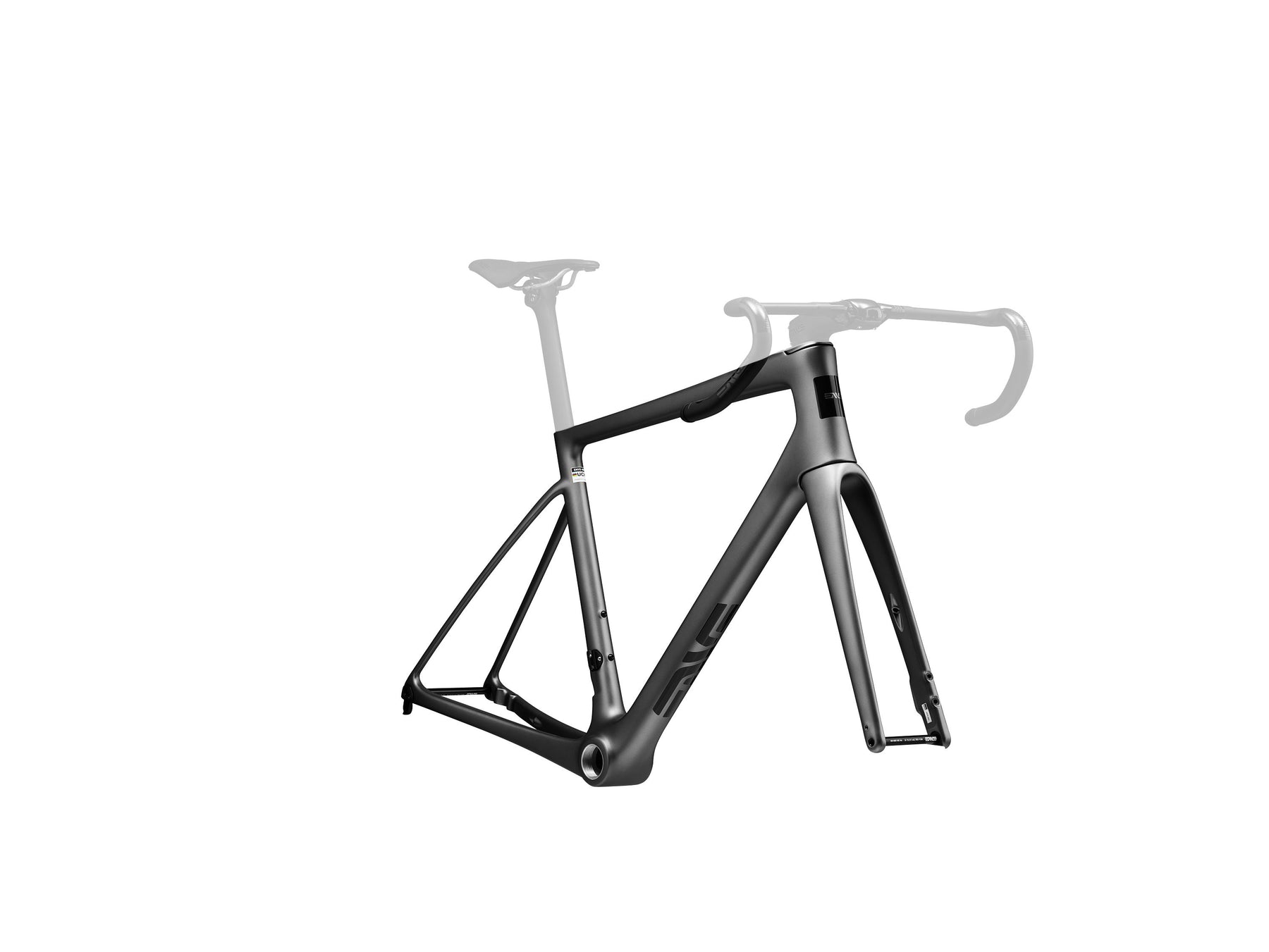

ENVE Composites Melee Carbon Road Frameset - 47cm, Damascus Grey
SKU: 100-5003-147
Free Shipping on orders over $50*
Found a better price? Request a Price Match
Shipping
Shipping
*Free shipping applies to parts orders over $50 shipping to addresses within the contiguous U.S. (excludes HI, AK, APOs and US territories). Some exclusions apply.
International Orders
We can sell and ship some items internationally but certain brands or substances may be prohibited from shipping outside of U.S. or to certain territories.
We are unable to estimate local taxes and VAT and are not responsible for any of these charges or duties.
Package forwarders may be utilized at your discretion. We are not responsible for any damage that occurs after your item has been delivered to the shipping address. All shipments need to be inspected prior to being forwarded to secondary destinations.
Lead Times
We under promise and over deliver. Although many products will ship the same day or next day, our official policy is 2-4 business days of handling time including expedited orders (Next Day Air, etc.). If you need something in a rush please use a premium shipping service and contact us prior to placing your order for a more accurate ETA.
Shipping Restrictions
Certain items containing lithium batteries, compressed air or hazardous materials may only be shipped within the contiguous U.S. using ground delivery only.
Oversized items, including bikes, may not be available for expedited shipping. We will contact you should in the event that your selected shipping service is unavailable for your order.
Bike Builds
All bikes are built, checked and test ridden prior to boxing and shipping. This process averages 1-3 weeks depending on our backlog and the complexity of your build. Expedited builds are available for an additional fee, contact us for details.
Complete bikes are packed in our own specially designed bike boxes but do require some basic assembly. If you aren't confident in your mechanical abilities please have your local shop do the final assembly.
Only bikes/frames over $3000 are eligible for free shipping. There is a $150 charge on all bikes/frames under $3000.
Received a damaged item or bike?
We do our best to protect everything we ship but accidents do happen. Please keep all packaging and contact us within 24 hours of receiving your order so we can file a claim.
Details
The Melee is a modern road racer that delivers on ENVE’s Real-World Fast™ design philosophy. Built for agility and response, with 35 mm of tire clearance, the Melee is ready for criteriums and classics alike.
An ENVE Chassis is the canvas upon which you can build your dream bike. The Melee is sold as a chassis-only which includes the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, and seatpost setback. If there are questions regarding your fit, work with your ENVE retailer and/or bike fitter, and employ the use of the ENVE Best-Fit Calculator to reach your ideal chassis configuration. From there, pair it with your drivetrain of choice and your favorite SES or Foundation wheelset.
● Real-World Fast™ aero optimization
● Tube shapes complement SES rim shapes
● Max Tire Clearance: 35 mm
● Frame Weight: 850 grams (56cm, Painted, No Hardware)
● Now available in three colors: Damascus Gray, Aegean Blue, and ENVE Black
Specifications:
| Frame/Fork | Melee |
| Handlebar | SES AR Handlebar |
| 47cm, 50cm = 38cm | |
| 52cm, 54cm = 40cm | |
| 56cm, 58cm = 42cm | |
| 60cm = 44cm | |
| Stem | ENVE Aero IN-Route |
| 47cm, 50cm = 80mm | |
| 52cm = 90mm | |
| 54cm, 56cm, 58cm = 100mm | |
| 60cm = 110mm | |
| Seatpost | Melee D shape Carbon |
| Frame | ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat-Mount Disc,Threaded T47 BB, Internal Routing, Fender Compatible |
| Fork Rake | ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat-Mount Disc, Internal Routing, Fender Compatible |
| Target Application | Road Race/Performance |
| Sizes (cm) | 47, 50, 52, 54, 56, 58, 60 |
| Fork Rake | 55, 51, 47, 43, 39 |
| Frame Size/Fork Rake | 47cm/55, 50cm/51, 52cm/47, 54cm/47, 56cm/43, 58cm/43, 60cm/39 |
| Frame Weight | 850g +/- 2% (Size 56, Painted, No Hardware) |
| Headset | ENVE Integrated IS52/IS52 Internal Drop-In |
| Headset Bearing | 1.5" IS52 Upper and Lower |
| Seat Post Diameter | ENVE Aero (With chassis option) |
| BB Type | T47 Inboard Bearing |
| Brake Mount | Flat Mount |
| Front Axle | 12x100 (Total Length: 122, TP:1.5, TL:15) |
| Rear Axle | 12x142 (Total Length: 168, TP:1.0, TL:14) |
| Minimum Tire Size | 25c |
| Optimal Tire Size | 27c-30c |
| Maximum Tire Clearance | 35c |
| In-Frame Storage | N/A |
| Frame Routing | Internal |
