Mondraker

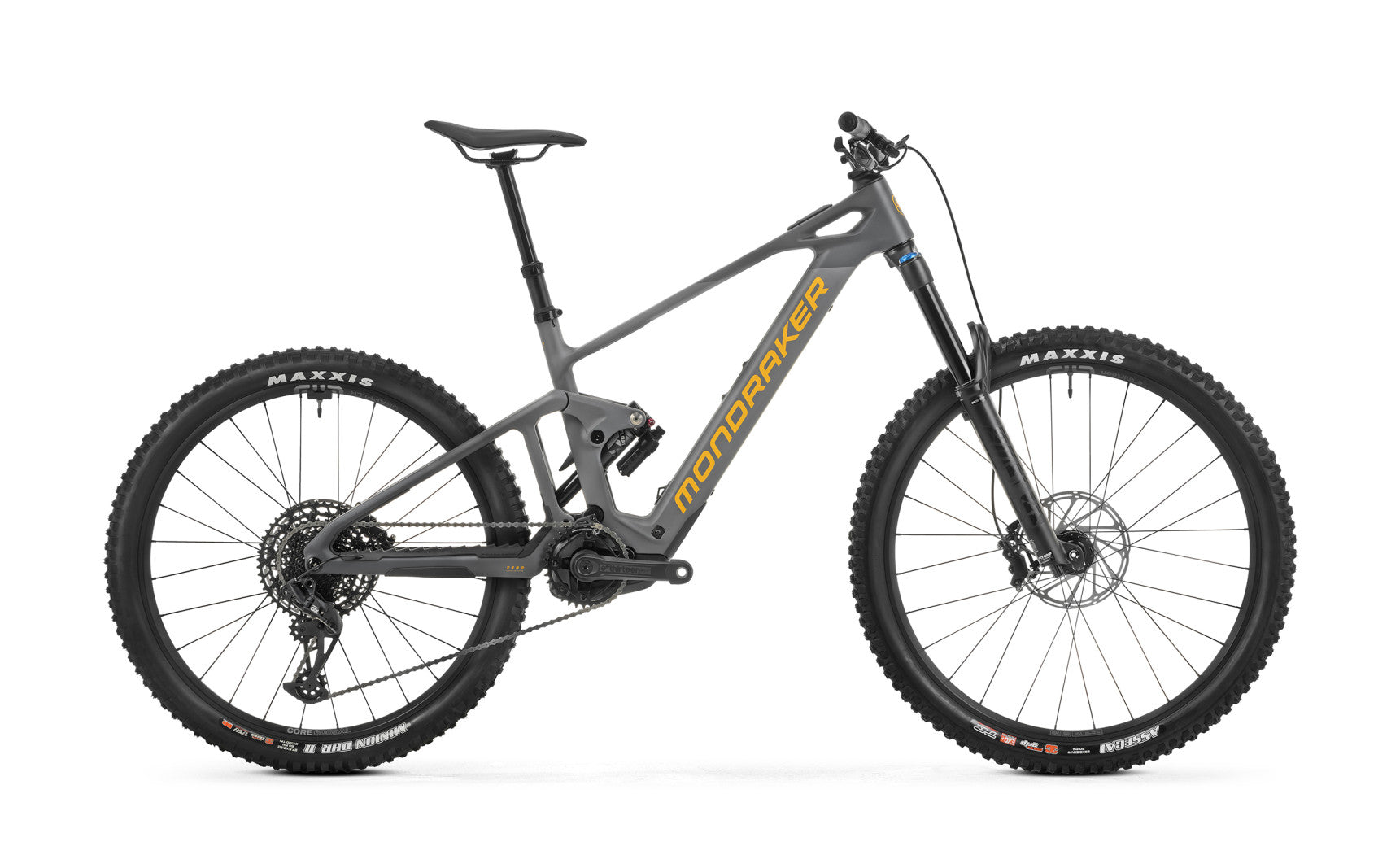

Mondraker DUNE R Mullet LIGHT Mountain E-Bike - Obsidian/Yellow/Gray
SKU: 010.25US255
Free Shipping on orders over $50*
Found a better price? Request a Price Match
Shipping
Shipping
*Free shipping applies to parts orders over $50 shipping to addresses within the contiguous U.S. (excludes HI, AK, APOs and US territories). Some exclusions apply.
International Orders
We can sell and ship some items internationally but certain brands or substances may be prohibited from shipping outside of U.S. or to certain territories.
We are unable to estimate local taxes and VAT and are not responsible for any of these charges or duties.
Package forwarders may be utilized at your discretion. We are not responsible for any damage that occurs after your item has been delivered to the shipping address. All shipments need to be inspected prior to being forwarded to secondary destinations.
Lead Times
We under promise and over deliver. Although many products will ship the same day or next day, our official policy is 2-4 business days of handling time including expedited orders (Next Day Air, etc.). If you need something in a rush please use a premium shipping service and contact us prior to placing your order for a more accurate ETA.
Shipping Restrictions
Certain items containing lithium batteries, compressed air or hazardous materials may only be shipped within the contiguous U.S. using ground delivery only.
Oversized items, including bikes, may not be available for expedited shipping. We will contact you should in the event that your selected shipping service is unavailable for your order.
Bike Builds
All bikes are built, checked and test ridden prior to boxing and shipping. This process averages 1-3 weeks depending on our backlog and the complexity of your build. Expedited builds are available for an additional fee, contact us for details.
Complete bikes are packed in our own specially designed bike boxes but do require some basic assembly. If you aren't confident in your mechanical abilities please have your local shop do the final assembly.
Only bikes/frames over $3000 are eligible for free shipping. There is a $150 charge on all bikes/frames under $3000.
Received a damaged item or bike?
We do our best to protect everything we ship but accidents do happen. Please keep all packaging and contact us within 24 hours of receiving your order so we can file a claim.
Details
Specifications:
- Frame: Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
- Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 490mm
- Rear Shock: Fox Float X Performance EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
- Shock Settings: Medium compression, medium rebound, air volume spacer 0.4
- Fork: FOX 38 Float 3P Performance Grip, 170mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
- Headset: Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
- Stem: Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
- Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
- Grips: Onoff Forest, CNC lock-on, 135mm
- Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
- Saddle: Fizik Terra Aidon Slim X5
- Front Brake: Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
- Rear Brake: Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
- Brake Lever: Sram DB8, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
- Rims: e*thirteen Grappler Core, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''''5 rear
- Spokes: e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
- Front Hub: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
- Rear Hub: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub
- Front Tire: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
- Rear Tire: Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
- Crankset: e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm
- Rings: Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
- Chain: Sram NX Eagle, 12s, Powerlock
- Rear Derrailleur: Sram GX Eagle,12s
- Shift Levers: Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
- Cassette: Sram PG-1230, 11-50T, 12s
- Motor: Bosch Performance Line SX (20 Mph) GEN4 SMART SYSTEM Diagonal, Wide
- Battery: Bosch Compact Powertube 400Wh
- Display: Purion 400 / Bosch Mini Remote / Bosch System Controller
- Weight: 43.9 lbs
Specs
