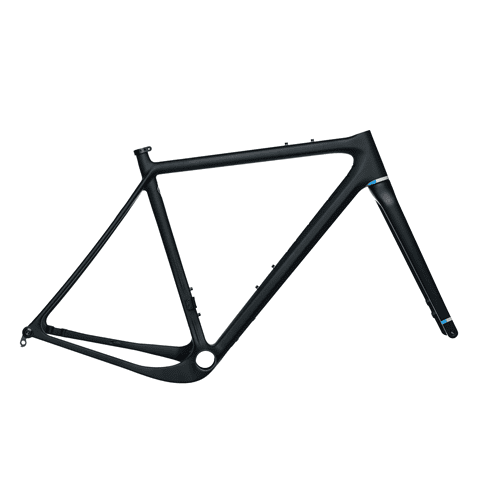

Open Cycle NEW U.P.P.P.E.R 27.5"/ 29" / 700c Gravel Plus Flat Mount Frameset - Black, Small - Open Box, New
SKU: openupperrtpsm
Free Shipping on orders over $50*
Found a better price? Request a Price Match
Shipping
Shipping
*Free shipping applies to parts orders over $50 shipping to addresses within the contiguous U.S. (excludes HI, AK, APOs and US territories). Some exclusions apply.
International Orders
We can sell and ship some items internationally but certain brands or substances may be prohibited from shipping outside of U.S. or to certain territories.
We are unable to estimate local taxes and VAT and are not responsible for any of these charges or duties.
Package forwarders may be utilized at your discretion. We are not responsible for any damage that occurs after your item has been delivered to the shipping address. All shipments need to be inspected prior to being forwarded to secondary destinations.
Lead Times
We under promise and over deliver. Although many products will ship the same day or next day, our official policy is 2-4 business days of handling time including expedited orders (Next Day Air, etc.). If you need something in a rush please use a premium shipping service and contact us prior to placing your order for a more accurate ETA.
Shipping Restrictions
Certain items containing lithium batteries, compressed air or hazardous materials may only be shipped within the contiguous U.S. using ground delivery only.
Oversized items, including bikes, may not be available for expedited shipping. We will contact you should in the event that your selected shipping service is unavailable for your order.
Bike Builds
All bikes are built, checked and test ridden prior to boxing and shipping. This process averages 1-3 weeks depending on our backlog and the complexity of your build. Expedited builds are available for an additional fee, contact us for details.
Complete bikes are packed in our own specially designed bike boxes but do require some basic assembly. If you aren't confident in your mechanical abilities please have your local shop do the final assembly.
Only bikes/frames over $3000 are eligible for free shipping. There is a $150 charge on all bikes/frames under $3000.
Received a damaged item or bike?
We do our best to protect everything we ship but accidents do happen. Please keep all packaging and contact us within 24 hours of receiving your order so we can file a claim.
Details
**THIS IS AN OPEN BOX NEW ITEM BUT IS IN BRAND NEW CONDITION AND NEVER RIDDEN**
Superlight version of the U.P. Combines performance-oriented road geometry & parts with clearance for mountain bike tires up to 2.1". Part of Bicycling Magazine’s “Ten Greatest Bikes Ever” for its ability to be not just good but great on-road and off-road.
In the box: Frame, U-Turn fork, headset, seattube collar, front & rear Carbon-Ti thru-axle, 2 derailleur hangers, 1 front derailleur mount, 3 MultiStops (2x, 1x, Di2), chainstay cable exit, BB guide, cable liners, noise-reduction foam sleeves, manual.
Specifications:
- Frame-only weight size M, ±3%: 880g
- Fork-only weight, ±3%: 370g
- Size: Small
- Color: Black
- BB standard: BB386EVO pressfit 86.5x46mm BB shell
- Recommended groupsets: For serious gravel and off-road (on any brand of bike), we recommend a rear derailleur with a clutch or cage damper (Shimano GRX (1x & 2x), SRAM Force AXS & Red AXS (1x & 2x), SRAM Apex1, Rival1, Force1, Campagnolo Ekar)
- Shimano crank fit: All road cranks
- SRAM crank fit: All DUB road, Force 1 BB30
- Front derailleur mount: Bolt-on, removable
- Recommended ring shape: Flat (for example Wolftooth)
- Maximum 1x ring size: General guidance: 50t (flat ring, not available in all sizes with all BCDs so check with your crank supplier), 46t (SRAM offset ring). Note: clearance depends on chainline & chainring. 2mm space is required so please verify.
- Maximum 2x ring size: Clearance depends on crank & chainring model. 2mm space is required. For most current generation cranks, the following applies:50t (outer ring), 36t (inner ring)
- Rear thru-axle: 142x12mm superlight Carbon-Ti X-12
- Front thru-axle: 100x12mm superlight Carbon-Ti X-12
- Front disc rotor size 160mm only
- Front brake caliper mount: Smartmount 160 system attaches flatmount caliper, without adaptor, for 160mm rotors
- Front brake bolts SRAM: 37mm “REAR” brake bolts for 30mm “chainstay” (SRAM part# 00.5318.005.008)
- Front brake bolts Shimano: 43.2mm “REAR” brake bolts for 30mm “chainstay” (Shimano part# Y8N208030)
- Front brake set-up Campagnolo “140mm” (rear) caliper + 160mm rotor, no adaptors, 2x 39mm "screws for 30-34 mm rear mount thickness” (Campagnolo part# AC18-DBSC39)
- Rear disc rotor size: 140mm or 160mm
- Rear brake 140mm mount: Direct mount
- Rear brake 160mm mount: Use adaptor for SRAM (00.5318.018.001) or Shimano (ISMMAR160DDA)
- Rear brake bolts SRAM: (140mm & 160mm disc) 2x 27mm (SRAM part# 00.5318.005.004)
- Rear brake bolts Shimano: (140mm & 160mm disc) 2x 33.2mm (Shimano part# Y8N208010)
- Rear brake set-up Campagnolo: “140mm” (rear) caliper + 140mm rotor (no adaptor) OR 160mm rotor + rear adaptor, 2x 29mm “screw for 20-24 mm rear mount thickness” (part# AC18-DBSC29)
- MultiStop internal system: 1x & 2x mechanical, Di2, eTap (eTap only included in U.P.P.E.R. frameset)
- Headset: Integrated IS42/28.6 | IS52/40 45x45 degrees). For example Cane Creek Forty BAA0783K or Chris King DropSet 2
- Seatpost: 27.2mm diameter, standard set-up zero-offset
- Cage mounts: Seattube, downtube, under downtube
- TT bag mount system: 100mm front-post-to-headset-edge
- Max. weight (total rider+luggage): 120kg / 264 lbs (EN/ISO/internal test standard)
- Included with frameset: Headset, seattube collar, thru-axles, 2 RD hangers, 1 FD mount, cover bolts for FD mount posts, 4 MultiStops (2x, 1x, Di2, eTap - eTap only included in U.P.P.E.R. frameset), cable exit stop, BB guide, cable liners, noise-reduction foam sleeves, bottle cage bolts, manu
