UNCOMPROMISING PERFORMANCE

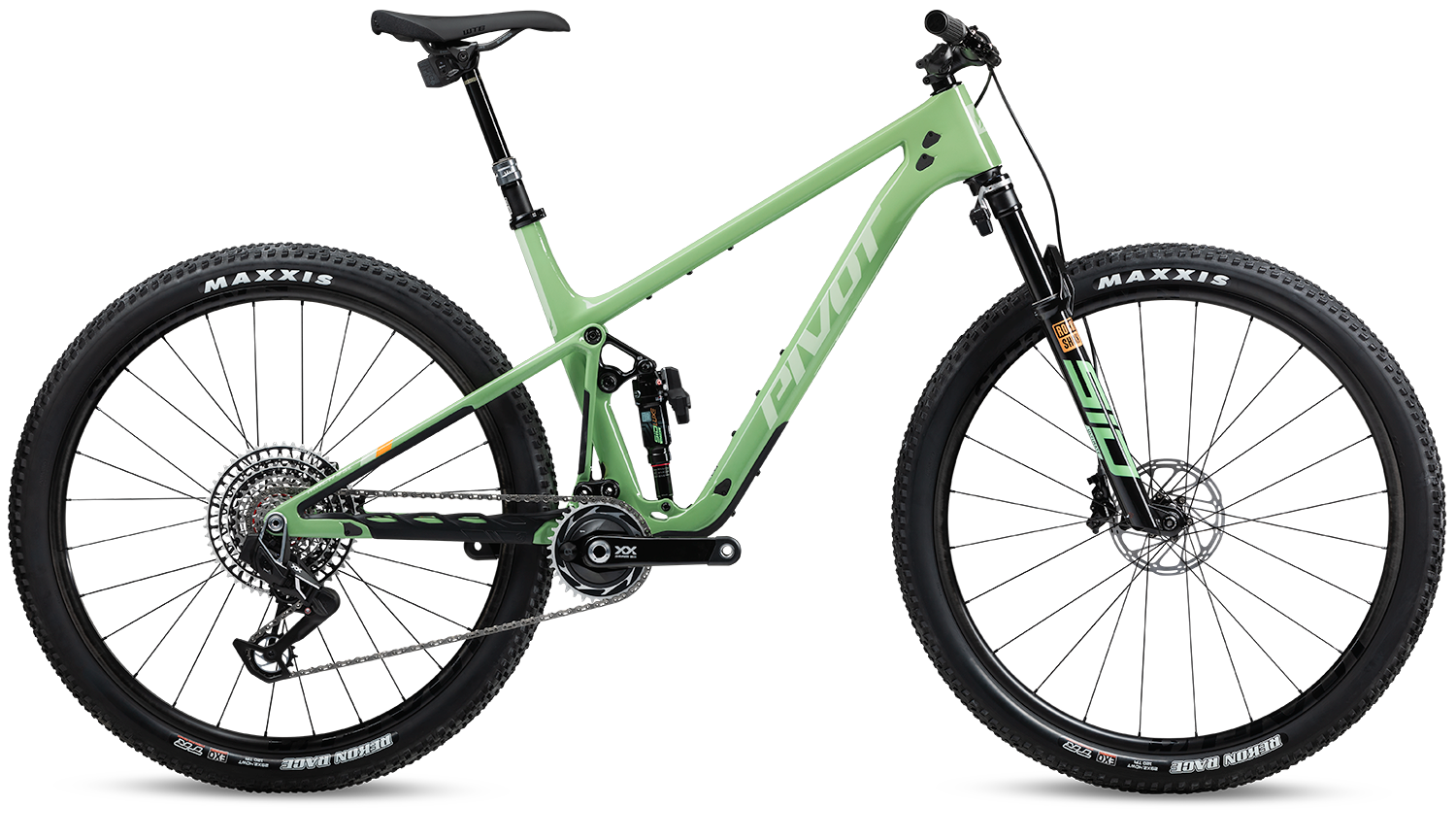

The all-new Mach 4 SL; a podium seeking missile crafted from the ground up as a testament to speed without compromise. designed to win gold and slaughter KOMs, and do so while delivering an otherworldly ride quality, telepathic handling, and a potent blend of acceleration and tractability.
MORE FUN
Not every day is race day. Sometimes our best races are with ourselves, racing itself should have some fun thrown in to buffer the suffering, the Mach 4 SL is as versatile as it is speedy. The World Cup build yields 95mm or 103mm of rear travel, easily adjusted via flip chip. The Trail build, aimed at squeezing as much fun as humanly possible while delivering either 106 or 115mm of rear travel via the Fox Float rear shock.LESS WEIGHT, A CONTINUING EVOLUTION
Thanks to the continuing evolution of our proprietary Hollow Core carbon fiber construction, the new Mach 4SL carves an impressive 280 grams out of the previous generation Mach 4SL. This absence of mass was achieved while improving the dw-link suspension, and without sacrificing strength, frame stiffness or handling integrity.
- XC-Tuned DW-Link™ Suspension
- New XC Adapted Travel-Adjustable Flip-Chip
- Efficient Fox Factory Float DPS Shock on World Cup Builds with 95mm or 103mm Adjustable Travel
- Versatile Fox Factory or Performance Float Shock Options on XC builds with 106mm or 115mm Adjustable Travel
- Lighter, More Durable High-Load Enduro Max bearings
- Size-Specific Carbon Layup Across Size Range
- Low Standover Fits Riders 4’10” to 6’ 7”
- Large Water Bottle Clearance on All Sizes
- Pivot’s full carbon frames feature size-specific ride tuning, leading edge carbon fiber materials and Pivot's proprietary hollow core molding technology to ensure that every rider from 4’10” to 6’7” has a bike that feels perfect and performs at the optimum level for their size.
- Injection Molded Rubberized Frame Protection
- Full Internal Routing with Pivot Cable Port System
- Pivot Dock Tool System Compatible Under Top Tube and BB
- Simplified Twistloc Suspension Lockout
- 100mm & 120mm Fox Fork Options
Specifications:
| MSRP |
$13,499 USD |
| WHEEL SIZE |
29" |
| FRAME |
Mach 4 SL |
| WHEEL MATERIAL |
Carbon |
| REAR SHOCK |
Rock Shox SIDLuxe Ultimate Flight Attendant |
| FORK |
Rock Shox SID Ultimate Flight Attendant 29", 44mm offset, 120mm |
| HEADSET |
Pivot Precision Sealed Integrated Cartridge |
| REAR DER |
Sram XX SL Eagle AXS 12-Speed |
| CASSETTE |
Sram XX SL 1299 10-52t |
| SHIFTER |
Sram AXS Pod Ultimate Controller |
| BRAKES |
Sram Level Ultimate Stealth 2-piston |
| CRANKSET |
Sram XX SL Eagle Power Meter DUB 34t - 170mm(XS-MD), 175mm(LG-XL) |
| HANDLEBAR |
Phoenix Team Flat Carbon - 760mm |
| GRIPS |
Phoenix Factory Lock-On |
| STEM |
Phoenix Team XC/Trail - 60mm |
| SEATPOST |
Rock Shox Reverb AXS 100mm (XS), 125mm (SM-LG), 150mm (XL) |
| SADDLE |
Phoenix WTB World Cup Volt (Narrow Width) - carbon rails |
| WHEELS |
Reynolds Blacklabel 309/289 XC w/ Industry Nine Hydra hub 30mm F 28mm R - 29" 15x110 F/12x148 R |
| TIRES |
Maxxis Rekon 29X2.4 3C TR, EXO, 120TPI |
| ROTOR |
Sram Centerline CenterLock - 180mm |
