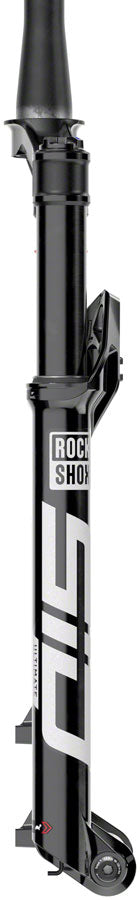

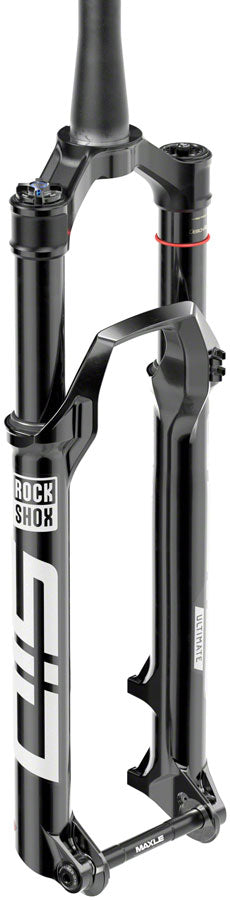

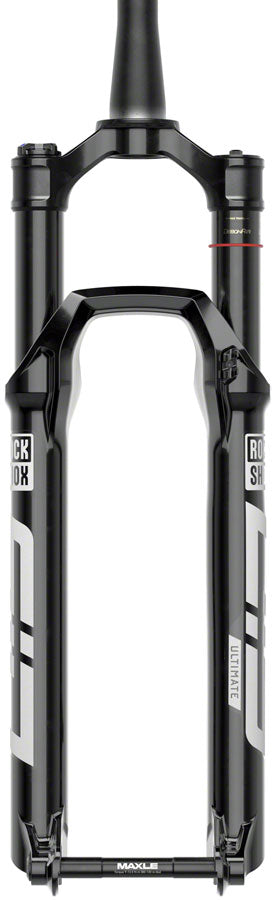

Fork
Climb mountains. Charge descents. SID Ultimate isn’t like other XC forks. It is lighter than ever with a formidable 35mm chassis that holds the line when you’re on the edge. The new Race Day 2 damper features a three-position (3P) compression adjuster—rigid Lock, plush Open, and efficient Pedal positions, all at your fingertips. SID adapts to everything from full-gas cross-country to sporty backcountry loops thanks to a new, higher-volume DebonAir+ spring that’s supple at the top of its travel with tons of tunability.
- NEW 35mm chassis is the perfect blend of light weight and rigidity for the modern XC bike. Plus, we made it lighter…again.
- NEW Charger Race Day 2 damper is the lightest damper on the market. This 3P damper features three compression positions: Open, Pedal, or a rock-solid Lock.
- NEW DebonAir+ provides more small-bump sensitivity and tunable mid-stroke support.
- NEW Bushing package maximizes bushing overlap for a smooth, solid ride.
- NEW Maxima Plush Dynamic Suspension Lube reduces friction, lasts longer, and enhances suspension performance ride after ride.
- NEW Crown machined to shave weight without compromising strength and stiffness.
- NEW covetable “Blue Crush” signature colorway and Ultimate High Gloss Black, featuring the new lustrous Pearl White graphics package.
- NEW Bolt-in torque cap adapters included for use with standard hub end-caps.

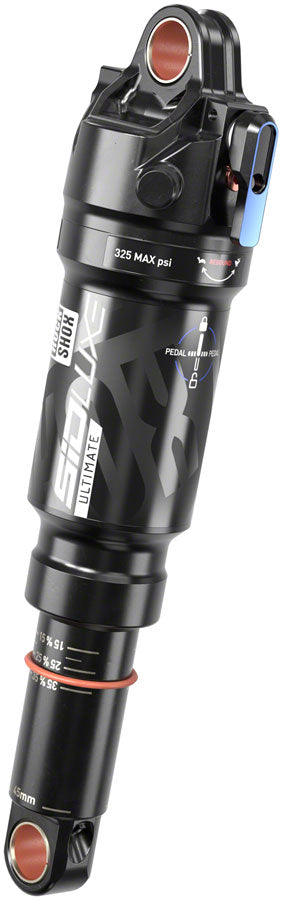

Shock
- NEW Three-position damping system: Open, Pedal, and Lock.
- NEW High speed compression damping blow-off for Open and Pedal positions.
- NEW Ultimate graphics package includes the decal option in our new signature Blue Crush colorway.
- Super-light XC design delivers premium performance and efficiency.
- Dial in the perfect feel with multiple Open, Pedal, and Lock compression tunes available.
- Designed to complement the feel of the SID and SID SL 3P suspension forks.
- Compatible with the latest TwistLoc Ultimate remote.
- Four damper control options to accommodate all bikes: lever adjust, remote in, remote out, backside remote.

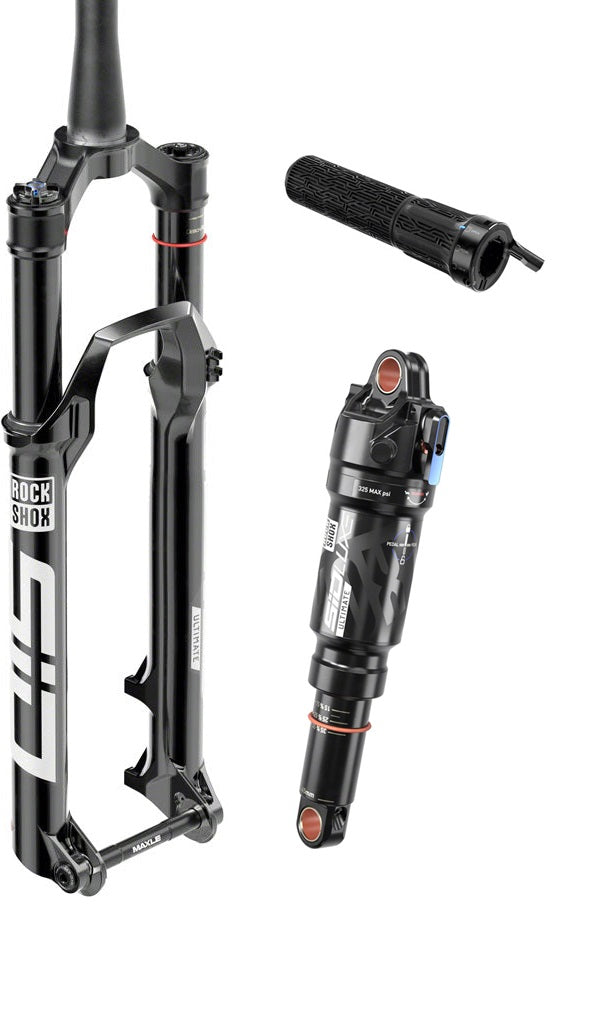

Included: Fork, Shock, Remote, Grips & Cables/Housing
-
Wheel size: 29"
-
Travel (mm): 120mm
-
Damper Type: Charger Race Day 2
-
Fork offset: 44mm (29")
-
Maxle included: Maxle Stealth
-
Color (FS): Diffusion Black
-
E-Bike Approved: Not Approved
-
Steerer: 1.5" Tapered
-
Axle: 15x110mm BOOST™
-
Axle to Crown (mm): 531
-
Brake type (FD): Disc
-
Crown Material: Forged, hollow aluminum
-
Upper crown type: n/a
-
Lower leg type: Magnesium
-
Upper Tube Finish: Fast Black
-
Upper tube type: 35mm tapered wall aluminum
-
Damper adjust: 3 position remote (Cable Pull 7mm + 7mm– sold separately)
-
Damping adjustments: Extl rebnd, 3 pos remote (open/pedal/lock)
-
Volume reducer: 0/3 Tokens
-
Spring: DebonAir+
-
Max Tire Diameter (mm): 758
-
Max Tire Width (mm): 66
-
Maximum Rotor Size: 220mm
-
Minimum Rotor Size: 180mm
-
Crown OD (mm): 58
-
Max recommended system weight: 331lbs/150kg
