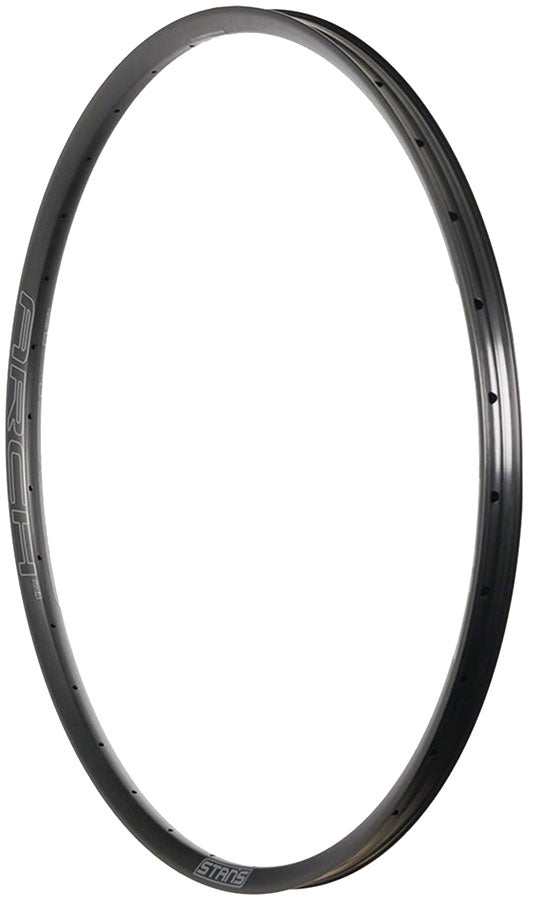

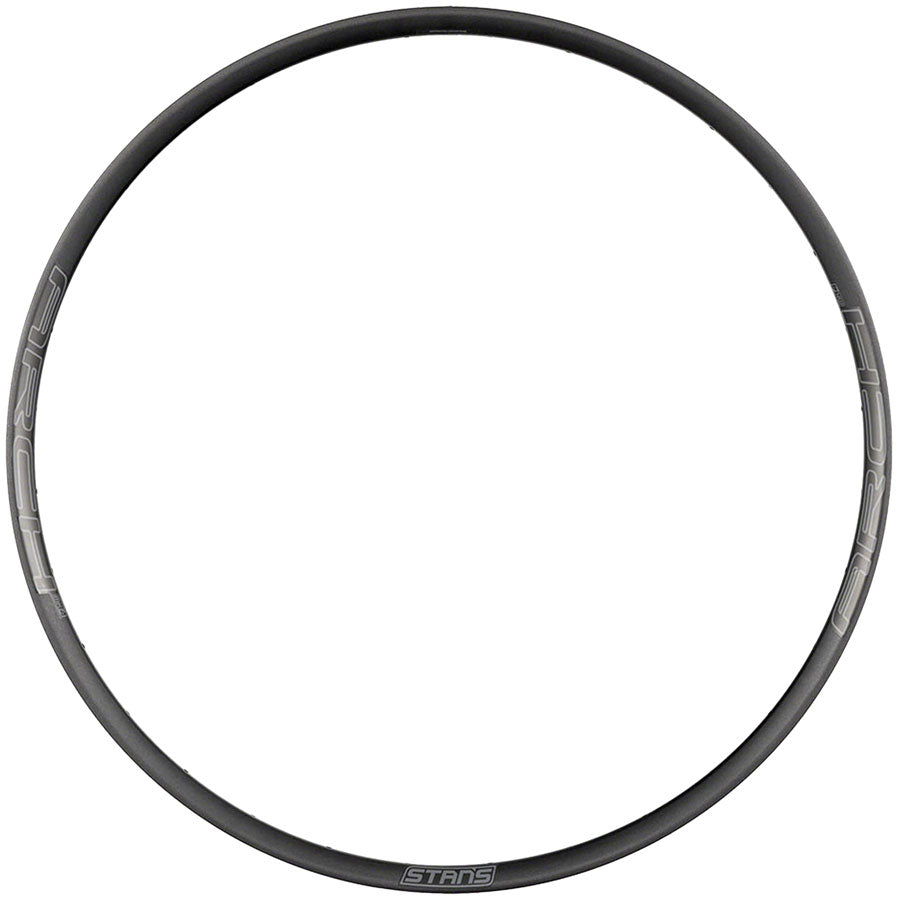

The Arch MK4 rim is light enough to take XC racing but was born from research and testing on the Enduro World Series circuit, making it a great rim for anyone looking to improve both descending and climbing. Constructed of light and strong 6069 aluminum alloy, with a reinforced spoke bed and 28mm internal width ideal for 2.2-2.5" tires, the Arch MK4 can get you up the climbs easier and make the descent even better. Utilizing Stan's patented Bead Socket Technology, combined with a stronger asymmetric design for balancing control and weight, the Arch MK4 your best choice for all-around riding.
- Versatile 28mm internal rim width optimized for 2.2-2.5” tires

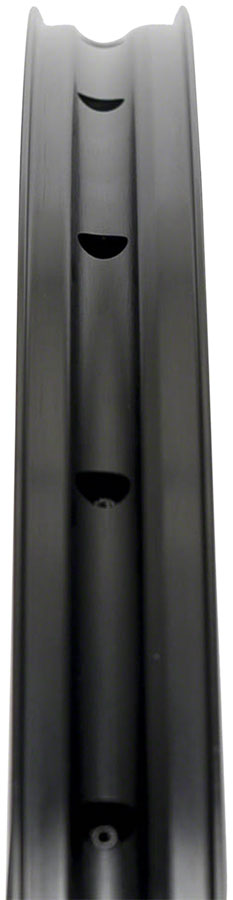

- Light and durable 6069 aluminum with welded joint and reinforced spoke bed
- BST Asymmetric design combines Stan’s legendary easy tubeless inflation with a stronger, more balanced wheel build
- 3-year rim warranty with 1-year crash replacement
Specifications:
- Brake Track: None
- Color: Black
- Defined Color: Gray
- Eyelets: None
- Hub Drilling: 28
- ISO Diameter: 584 / 650b / 27.5"
- Manufacturer Spec ERD (mm): 561
- Rim Center Offset (mm): 2.5
- Rim Depth (mm): 18.9
- Rim Joint: Welded
- Rim Material: Alloy

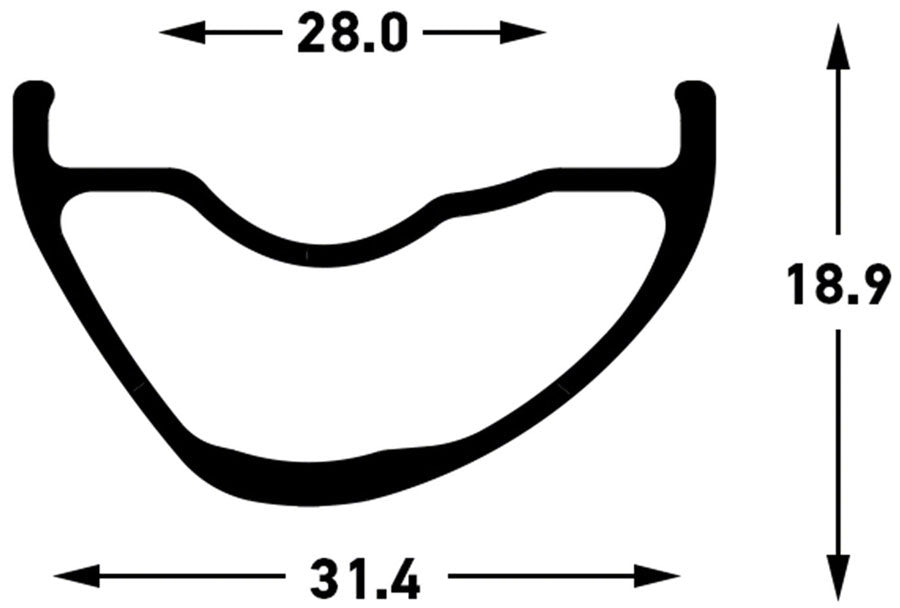

- Rim Width (External): 31.4
- Rim Width (Internal): 28
- Tire Type: Tubeless Ready
- Valve: Presta
- Valve Length: Short 32-40mm
- Weight: 451
- Wheel Size: 27.5"
